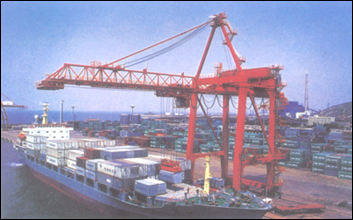

30.5t Quayside Container Crane

 　

　

    We can provide customers with quayside container crane of steel rope drag type and heavy load carrying trolley type. This model is capable of tilting and installed with mechanical and electronic control system for protections such as anti-sway etc. The electronic control system is equipped with whole digital silicon control DC speed adjustment system and computer management system. The different models of products designed by our company have formed series of light, common and long span cranes with hoisting capacity of 30.5ton, 35ton and 40.5tons.
　
　
Type AJ40.5-15 AJ40.5-35 AJ45-35 AJL45-32
Hoisting capacity(t) 40.5 40.5 45 45
Rated hoisting capacity(t) Under spreader 30.5 30.5 35 35
Under hook 38 38 40 40
Outreach(m) Front 15 35 35 32
Rear outresch 7.5 8.5 10 10
Lifting height(m) Above rail 10 25 25 23
Below rail 14 12 12 12
Lifting speed(m/min) Light oad 24 120 110 60
Full load 12 50 45 30
Trolley speed(m/min) 60 150 160 150
Gantry speed(m/min) 27 45 45 30
Luffing time(min/stroke) 　 5 5 6
Track gauge(m) 10.5 16 16 16
Wheel load≤(t) 25 40 40 32
Power supply(V) 380 6000 6000 1000
Model Quayside Qrdinary 　 (Light)
　
　 　 　
