Portal Bridge Crane |
|
|
|
|
 |
| |
40T TYRE-MOUNTED CONTAINER GANTRY CRANEThis container gantry
crane is specially-usec machine for
handling containers in the yards.
With the advantages of high stack,
quick handling less occupation and
good maneuverability, etc. It is
ideal handling machine for good
maneuverability etc. |
|
| |
|
|
| |
|
Type |
GJ30.5 |
GJ35 |
|
lifting capacity (t) |
Max |
40 |
45 |
|
Under
spreader |
30.5 |
35 |
|
Container standard (ft) |
20’40’ |
20’40’ |
|
Hoisting height(m) |
Above rail |
12.2 |
12.0 |
|
Below rail |
5.0 |
5.0 |
|
Span(m) |
23.47 |
|
|
Wheel
base (m) |
15.2 |
15.5 |
|
Max wheel
load(t) |
≤22 |
27 |
|
Outreach(m) |
4 |
7.5 |
|
Over
containers |
3 |
4 |
|
Working speed (m/min) |
hoisting |
12 |
14 |
|
trolley |
38 |
62 |
|
gantry |
52 |
51 |
|
Hombres of sets wheel |
driving wheel |
8 |
8 |
|
driven wheel |
8 |
8 |
|
Power
source |
3Φ,380V,50Hz |
3Φ,380V,50Hz |
|
|
| |
|
|
|
 |

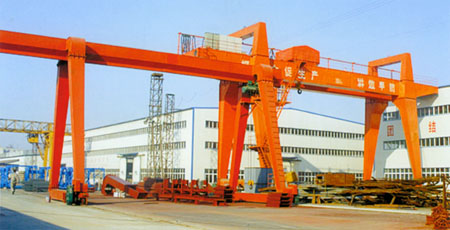

ME (50t +50 t) 30m double
girder gantry crane with a rated
maximum weight is the main hook from
100t, by a car carrying two 50t
cranes 100t, Vice-hook for hanging
in the main beam under the I-beam on
the 10t electric hoist, crane span
of 30m, the main lifting spreader to
the bottom side of cart track
lifting height of 20m, so the crane
is a large-span since the weight of
a small engineering gantry crane.
|
|
Item |
Content |
|
Type
|
ME50+50-30 A5 |
|
Rated lifting
capacity |
100 t |
|
Crane Span |
30´12m |
|
Lifting
Height |
20 m |
|
Trolley Hoist
Speed |
5.9m/min |
|
Trolley
travelling speed |
24.7m/min |
|
Crane walking
speed |
23.1m/min |
|
10t Hoist
hoisting Speed |
7m/min |
|
Bottom
orbital plane away from the
crane cab height
|
～16m。 |
|
Machine
working-level |
A5 |
|
Power supply |
Cable Reels |
|
Power source |
～380V
50Hz |
|
| |

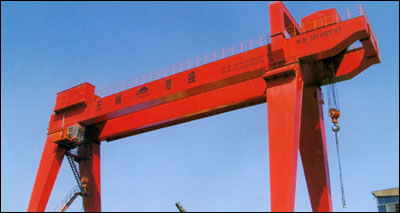

ME (100t +100 t) / 160t 30m
double-beam pairs of small cranes
lifted the door hanging from the
total weight of 300t, span of 92m,
lifting height of 60m of the gantry
crane, mainly used in the production
process in the sub-hull lifting,
lifting, and turn over operations
such as working conditions. Their
emancipation weight is 200t.
In order to run a smooth lifting,
improve equipment reliability and
working efficiency, the machine
adopts full-frequency control and
machine PLC control and configure
the intelligent touch screen is
totally in Chinese. |
|
 |
| |
|
Item |
Content |
|
Type |
ME100+100/160-92 A5 |
|
Rated lifting
weight of above small cart |
2×100t |
|
Rated lifting
weight of below small cart’s
hook |
160t |
|
Rated lifting
weight of below small cart’s
aux hook |
20t |
|
Lifting
weight (Lifting by two cars) |
300t |
|
Lifting
weight of turn over |
200t |
|
Span： |
92 |
|
Effective
lifting height |
60m |
|
Lifting speed
of above small cart |
0.5~5~10m/min |
|
Lifting speed
of below small cart |
0.5~5~10m/min |
|
Lifting speed
of above small car’s aux
hook |
0.5~5~10m/min |
|
Travelling
speed of Cart |
2~25m/min |
|
Travelling
speed of above and below
cart |
2~25m/min |
|
Maximum wheel
pressure |
working<
450KN，inoperative<480
KN |
|
Working wind
force/Anti-wind capability |
≥20m/s
|
≥55m/min |
|
Cart/trolley
tracks |
≥QU100 |
|
5t Speed of
maintenance crane |
Lifting
8m/min |
Slewing
0.4r/min |
|
Power sorce |
10KW 50HZ |
|
| |
| |
