Fixed Crane

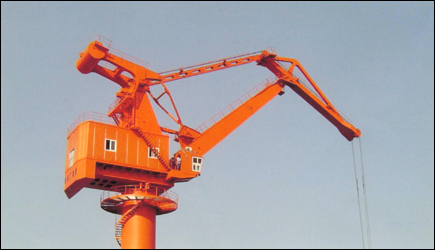

	HGQ model stationary type omnidistance luffing crane is suitable for small and media size of fresh water ports, storage yard, and stacks which handle the operation for loading and unloading cargoes in packages, chandlery and bulk cargos.     This model is of single girdle truss type with wire rope or single rack luffing. It is facilitated with compensating double pulley system, which enables the cargo to move horizontally. The model is capable of omnidistance load and luffing and slewing at any angle with load. It can be operated with stability, reliability, high efficiency and safety.     This model is manufactured and installed based on the combination of our company standard HGQ Rotary Bearing Fixed Cranes with GB3811-83 Criterion for Design of Cranes and GB6067-85 Safety Rules on Cranes. It can be fitted with lifting hook and grabs
	Lifting capacityt 3 5 8 10 16 20 25 30 35 40 Biggest work scopem 20 25 25 25 30 30 25 20 20 20 Biggest lifting altitude (m) In area of bearing 15 18 18 18 22 22 22 22 20 20 Under area of bearing 8 8 8 8 8 8 8 8 8 8 Grab work Lifting speed (m/min) Steel wire amplitude 36 36 36 36 36 30 30 30 30 30 Single rack amplitude 50 50 50 42 42 42 40 40 40 40 Amplitude speed (m/min) Steel wire amplitude 22 22 22 20 20 20 20 18 18 18 Single rack amplitude 40 40 40 35 35 35 35 30 30 30 Velocity of whirl(r/min) 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58 Installed capacity (KW) Steel wire amplitude ～45 ～86 ～120 ～154 ～210 ～247 ～290 ～330 ～350 ～420 Single rack amplitude ～63 ～100 ～140 ～194 ～240 ～287 ～330 ～400 ～490 ～600 Lift hook work Lifting speed(m/min) 22 22 22 20 20 20 20 18 18 18 Amplitude speed(m/min) 18 18 18 18 16 16 16 12 12 12 elocity of whirl(r/min) 1 1 1 1 1 1 1 1 1 1 Installed capacity(KW) ～26 ～44 ～56 ～67 ～92 ～127 ～149 ～157 ～199 ～231
	QB Type Ship Fixed Crane
	QB model stationary marine crane is installed on the engineering vessels which berth at offshore and fresh water. The crane mainly handles the operations such as loading and unloading the bulk goods and cleaning for river path sludge etc. It is designed for the special working environment which has been corroded by fog, storm and maritime climate.     All of the equipments manufactured by our company have either been awarded Certificate for Marine Product by China Classification Society Shang Hai Branch, or ZC Certificate for Marine Product by Wu Xi Marine Board. They are safe, reliable and suitable for working with the grabs with heeling of five degrees and longitudinal trim of two degrees.
	Lifting capacity(t) 3 5 8 10 16 20 Biggest work scope(m) 18 25 25 25 30 30 Smallest work scope(m) 6 8 8 8 9 9 Lifting speed(m/min) 36 Amplitude speed(m/min) 20 Velocity of whirl(r/min)B 1.5 Hoist crane tail radius(m) 3.6 4.0 4.6 5.0 5.5 5.8 Control mode Electrically operated Power 380V 50Hz Three four-wire systems
	This fixed crane is designed by single boom, using wire rope amplitude can be luffing with load for 360-degree rotation, can make decisions within the work of lifting, amplitude, rotation of the individual or joint action; as Vice lifting, amplitude, rotation of the individual or joint action. The door in Block 4 legs of the pier foundation bolt connection. Lifting, amplitude, rotating both AC frequency conversion stepless speed regulation, electric control part adopts PLC control. In order to ensure safe and reliable crane work, installation of advanced safety protection device and pointing device. The machine structure of sufficient strength, rigidity and stability, and anti-fatigue; it is a body rational layout, advanced technology, superior performance, transmission smooth, safe, reliable, low noise, easy operation and flexible, accurate, and convenient maintenance characteristics of the mature product.
	120t Fixed Crane Performance Parameters
	Lifting capacity Lifting weight t Main hook 　 Aux hook 120 20 Amplitue m Rmax=15.5, Rmin=10.5 Rmax=22.68,Rmin=12.15 　 Lifting height Above basis m 15(R=20m) 20(R=22.68m) Below basis m 18 18 　 Mechanism speed Lifting m/min 0.3～ 3 m/min （fully load） 1.4～ 14 m/min （fully load） 0.3～ 6 m/min Underloading 1.4～ 28 m/min Underloading Luffing m/min 0.3～ 3 m/min Loading 0.3～4.8 m/min Idling Slewing r/min 0～0.35 \F(1,3)  r/min Mechanism working level   A5 Height of portal clearance m´m 10.5 ´ 16 Slewing ring gear m 5 Tail radius of gyration   131.40.4000 Installed capacity m ≤9 Power supply KW 115 Control mode   　 Power source   PLC Power source   AC 380V 50Hz Main hook：15.5m～20m can be used for other hanging set，Maximum amplitude 20m
	100t Fixed crane   Technical Specifications Table
	Item Content Type HGQ10035 Fixed Crane Lifting capacity(t/m) Hook 100t 50t 15t （Aux hook） Working Range (m) Max 25m 35m 31m Min 13m 11.6m Lifting height (m) Above ground 30m Below ground 12m Mechanism speed Lifting 0.25~12m/min 1.5 ~25m/min Luffing 1.5~15m/min Slewing 0.8r/min Mechanism working level A5 Installed capacity 9m Control mode Center collecting ring Power source Current 380V，50HZ，Three-phase five-wire
