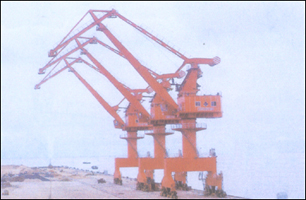

Portal Slewing Crane
	MQ Model portal crane is a multi-function large size loading and unloading equipment for handling of chandlery. It is applicable to all kinds of big docks and ports and can move freely along the pre-set rails. This model is widely used in various fields with high operating efficiency. This Model includes single girder type and single Rack Luffing type. Facilitated with compensating pulley system, the crane is capable of horizontal movement with load and joint operation for slewing, hoisting and luffing at any angles with load. The crane has the advantage of energy saving and high efficiency. The activities conducted by this machine are stable , reliable, and safe.     This model of crane is designed and manufactured according to GB3811-83 Criterion of Designing for Cranes, , GB6067-85 Safety Rules on Cranes, GB17495-1998 Technical Requirement on Portal Crane, JT400-1999 Safety rules on Portal Crane and other related standards.
	Main technical parameters
	Lifting capacity(t)—Grap 8t 10t 16t 20t 25t 30t 35t 40t Working radius(m) Max 25 30 33 30 33 50 33 30 Min 8 8.5 9.5 9 9.5 13 9.5 9.5 Hoisting height(m) Above rail 18 21 23 22 23 25 23 20 Below rail 10 12 12 12 12 12 12 12 Hoisting speed m/min 40 Luffing speed m/min 26 Slewing speed r/min 1.52 Traveling speed m/min 26 Gate clean-up height(m) 5 The base is apart from/the gauge(m) 10.5×10.5 Always turns the number/driving gear number 8/4 12/8 16/8 16/8 16/8 24/12 24/12 24/12 Max wheel load(KN) ≤250 Rail P50、QU80 Power source 3-Phase 4-wire,380V,50Hz
	Main technical parameters
	Main capacity ×Radius 60t×100m Aux capacity × Radius 15t×105m Hoisting height Main hook 80m Aux hook 90m Span × Base 16×16m Number of traveling wheel 16×4 Max wheel load 30t power supply Cable drum 380v 50Hz

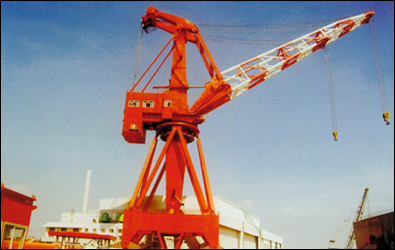

	16t-40m Shipyard Portal crane
	Type MQ1640 Hoisting capacity Hook 16 5 Working radius Max/Min 13~20 13~40 Lifting height above rail/below rail +30~-10 Mechanism working speed Hoisting speed 15m/min Luffing speed 8m/min Slewing speed 0.6r/min Traveling speed 25m/min Mechanism working level A5 Rear swing radius ≤7.5m Span 10.5 Total wheels number/Driving wheels number 24/12 Max wheel load <26 Power source 3-phase,4-wire,380V,50Hz
	20t-32m Shipyard Portal crane
	Type MQ2032 Hoisting capacity Hook 20 10 Working radius Max/Min 10~20 10~32 Lifting height above rail/below rail +38/-8 Mechanism working speed Hoisting speed 15m/min Luffing speed 8m/min Slewing speed 0.6r/min Traveling speed 25m/min Mechanism working level A5 Rear swing radius ≤7.5m Span 10.5 Total wheels number/Driving wheels number 24/12 Max wheel load <26 Power source 3-phase,4-wire,380V,50Hz
	30t-50m Shipyard Portal crane
	Type MQ3050 Hoisting capacity Hook 30 10 Working radius Max/Min 15~20 15~50 Lifting height above rail/below rail +65 / -18 Mechanism working speed Hoisting speed 15m/min Luffing speed 8m/min Slewing speed 0.6r/min Traveling speed 25m/min Mechanism working level A5 Rear swing radius ≤7.5m Span 10.5 Total wheels number/Driving wheels number 24/12 Max wheel load <26 Power source 3-phase,4-wire,380V,50Hz
	50t-50m Shipyard Portal crane
	Type MQ5050 Hoisting capacity Hook 50 16 Working radius Max/Min 16~26 16~50 Lifting height above rail/below rail +50/-20 Mechanism working speed Hoisting speed 15m/min Luffing speed 8m/min Slewing speed 0.6r/min Traveling speed 25m/min Mechanism working level A5 Rear swing radius ≤7.5m Span 10.5 Total wheels number/Driving wheels number 24/12 Max wheel load <250KN Power source 3-phase,4-wire,380V,50Hz
	50t-75m Shipyard Portal crane
	Type MQ5075 Hoisting capacity Hook 50 40 15 10t Working radius Max/Min 22~35 22~40 22~65 25.2~75 Lifting height above rail/below rail +50 / -10 Mechanism working speed Hoisting speed 2~10m/min 2~2.5 m/min Luffing speed 2~15m/min Slewing speed 0.03~0.58r/min Traveling speed 0.25~25m/min Mechanism working level A5 Rear swing radius ≤8.75m Span 10.5 Total wheels number/Driving wheels number 40/20 Max wheel load <250KN Power source 3-phase,4-wire,380V,50Hz
	50t-90m Shipyard Portal crane
	Type MQ5090 Hoisting capacity Hook 50t 40t 30t 15t 副钩10t Working radius Max/Min 28~45m 28~52m 28~62m 28~85m 31~90m Lifting height above rail/below rail +55 / -12 Mechanism working speed Hoisting speed 2~10m/min 2~2.5 m/min Luffing speed 2~15m/min Slewing speed 0.03~0.30r/min Traveling speed 0.25~25m/min Mechanism working level A5 Rear swing radius ≤10m Span 10.5 Total wheels number/Driving wheels number 48/24 Max wheel load <26 Power source 3-phase,4-wire,380V,50Hz
	60t-60m Shipyard Portal crane
	Type MQ6060 Hoisting capacity Hook 60 15 Working radius Max/Min 20~30 23.5~60 Lifting height above rail/below rail +40/-15 Mechanism working speed Hoisting speed 15m/min Luffing speed 8m/min Slewing speed 0.6r/min Traveling speed 25m/min Mechanism working level A5 Rear swing radius ≤7.5m Span 10.5 Total wheels number/Driving wheels number 24/12 Max wheel load <26 Power source 3-phase,4-wire,380V,50Hz

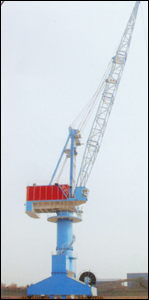

	50t-60m Ship Portal Crane
	50t-60m portal crane is designed for the setting in the shipyard and the large manufactory.     This crane is single boom structure which ensures a horizontal path of the load throughout luffing and stable slewing at any angle with load .The hoisting, luffing and slewing mechanisms can be operated individually or jointly with the advantages of large radius and high speed.     The cab is of panoramic-view type. The high quality marine cables and controllers are provided in electrical system. The central slip-ring collector has the advantages of large capacity and good property and is suitable for shipyard frequent operation.     Necessary electrical and mechanical safety protection devices are provided for all mechanisms.
	Main technical parameters
	Main hook capacity ×Radius 50t×35m 25t×50m Auxiliary hook capacity × Radius 15t×55m Lifting height Main hook:+45m  10m Aux hook: +50m  10m Rail gauge × Span 10.5m×12m Traveling wheel number 4×10 Max wheel load ≤30t Power supply 380v 50Hz Cable drum
